Description

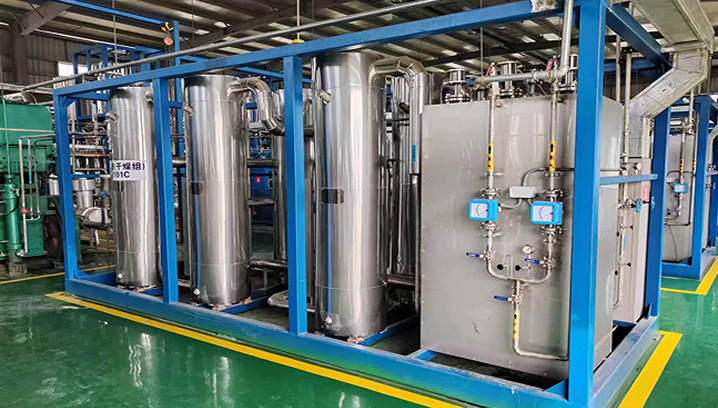

KVK Corporation’s Nitrous Oxide Gas Plant is designed for controlled production of Nitrous Oxide with emphasis on safe operation, economical power and material consumption, purification and quality control. The gas confirms to Indian Pharmacopoeia and can be stored in liquid form of Raw material.
Key Features
- Electrically heated melting and decomposition pots with temperature controllers.
- Purification system for removal of impurities.
- Regeneration facility.
- Laboratory and quality-control provisions.
- Equipment safety systems.
Technical Data
| Specifications | 8 M³/Hr | 16 M³/Hr | 24 M³/Hr |
|---|---|---|---|
| Start-up time | 7 Hrs | 8 Hrs | 8 Hrs |
| Ammonium Nitrate Consumption per M³ of Gas produced (Subject to Quality) | 4.0 kgs Max. | 4.0 kgs Max. | 4.0 kgs Max. |
| Water required for processing | 290 ltrs | 575 ltrs | 850 ltrs |
| Water required for cooling | 650 ltrs | 725 ltrs | 750 ltrs |
Statutory requirement: Customers in India are cautioned to obtain licences and approvals of state and central government authorities.
